PM1895 Green Silicate Phosphors
Stanford Chemicals Company (SCC) is a trusted supplier of LED phosphors with competitive price and excellent service. SAM provides a wide range of chromatography of phosphors for the production of energy-efficient LEDs.
Other related products:
Red Nitride Phosphor Powder (YG630), Yttrium Gallium Aluminum Garnet (YGaAG) Phosphor Powder, Lutetium Aluminum (LuAG) Phosphor Powder
Description

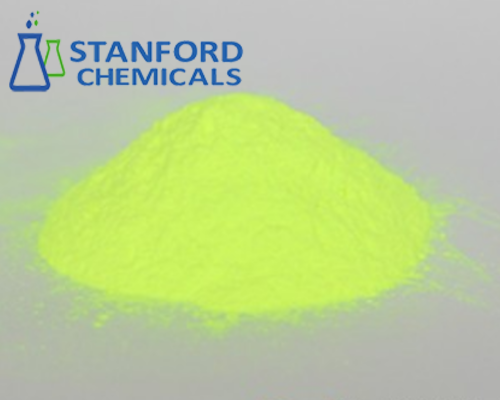

Green Silicate Phosphors Description
Used for high-power positive white LED packaging, the green Silicate Phosphor has good thermal stability, long life, high brightness, uniform particle size, and high conversion efficiency. Besides, it has little attenuation for long-term use under a high temperature and high humidity atmosphere, which can be used for manufacturing an LED lighting device excellent in both temperature and humidity resistance.
Our LED phosphors will help LCD manufacturers produce high-color-gamut displays, with unprecedented color realism on the screen, and will provide materials that match high-performance color filters.
This series of silicate phosphors can be combined with other yellow or red phosphors for packaging warm white or special light LEDs.
Silicate Phosphors Specifications
| Item | GSP540 | GSP525 |
| Material | silicate | silicate |
| Density | 5.1 g/cm3 | 5.1 g/cm3 |
| Peak Wavelength | 540±2 nm | 525±2 nm |
| Domain Wavelength | 557±1 nm | 546±1 nm |
| CIE 1931 | x=0.367±0.002 | x=0.271±0.002 |
| y=0.592±0.002 | y=0.626±0.002 | |
| Particle Size | D10=5±1 μm | D10=7±1 μm |
| D50=15±1 μm | D50=18±1 μm | |
| D90=19±1 μm | D90=22±1 μm | |
| FWHM | 75±2 nm | 66±2 nm |
| Excitation Range | 275 μm-460 μm | 275 μm-460 μm |
Silicate Phosphors Applications
- Human lighting: lighting that answers human natural clocks’ needs
- General lighting: including retail, residential, and professional lighting
- Backlighting: for smartphones, monitors, televisions, etc.
- Internal and external applications in the car industry
Silicate Phosphors Packing
1 kg/ bottle, 10 kg/ carton, 25 kg/ drum, or according to requirement.
Externally, our silicate phosphor powder is tagged and labeled for efficient identification and quality control. Care is taken to avoid any damage that might be caused during storage or transportation.
