Catalog No. PM1894
Material Silicon-based nitride
Color Red
Excitation Range 350 μm-550 μm

Stanford Chemicals Company (SCC) is a trusted supplier of phosphors with competitive price and excellent service. SAM provides a wide range of chromatography of phosphors for the production of energy-efficient LEDs.

Other related products: Yttrium Aluminum Garnet (YAG) Phosphor PowderYttrium Gallium Aluminum Garnet (YGaAG) Phosphor PowderLutetium Aluminum (LuAG) Phosphor Powder

Description

Description

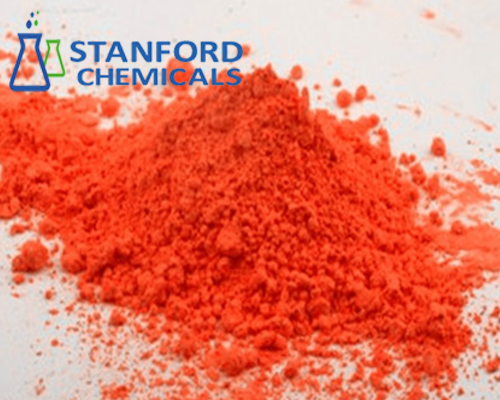

Red Nitride Phosphor Powder (YG630) Description

Ternary, quaternary, and multicomponent covalently bonded nitrides, particularly Si-based nitrides, are regarded as an ideal matrix material for luminescent materials owing to their unique strong crystal structure and suitable crystallization sites occupied by activator atoms, which enable diverse structures.

Our LED phosphors will help display manufacturers create LCDs with high color gamuts, giving the screen unparalleled realism in color and providing materials suitable for high-performance color filters. This is a fine range of LED phosphor materials boasting exceptional stability and efficiency. Application This series of phosphors can be used in red LED packages or combined with other yellow or green phosphors to package warm white or special light LEDs.

Red Nitride Phosphor Powder (YG630) Specification

Item RNP-SAM-1
Material CaAlSiN3: Eu
Density 2.8 g/cm3
Peak Wavelength 630±1nm
CIE 1931 x=0.6568±0.003
y=0.3429±0.003
Particle Size D50=13±1μm
D50=15±1μm
D50=18±1μm
Excitation Range 350 μm-550 μm

Red Nitride Phosphor Powder (YG630) Applications

  • Human lighting: lighting that meets the needs of human natural clocks
  • General lighting: such as retail, residential, and professional lighting
  • Backlighting: for smartphones, monitors, televisions, etc.
  • Internal and external applications in the automotive industry
