PM1891 Yttrium Aluminum Garnet (YAG) Phosphor Powder

Get A Quote






  I would like to join the mailing list to receive updates from Stanford Chemicals.
*: e-mail address with your company's domain name is preferred. Otherwise, we may not be able to process your inquiry.

Catalog No. PM1891
Color Yellow
Excitation Range 530-560 μm
Compositions Y3Al5O12: Ce3+

Stanford Advanced Materials (SAM) is a trusted supplier of LED phosphors with competitive price and excellent service. SAM provides a wide range of chromatography of phosphors for the production of energy-efficient LEDs.

Description

Description

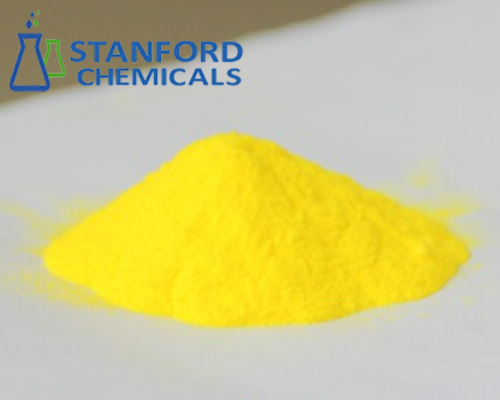

Description of Yttrium Aluminum Garnet (YAG) Phosphor Powder

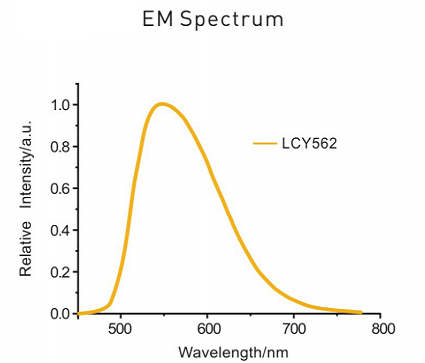

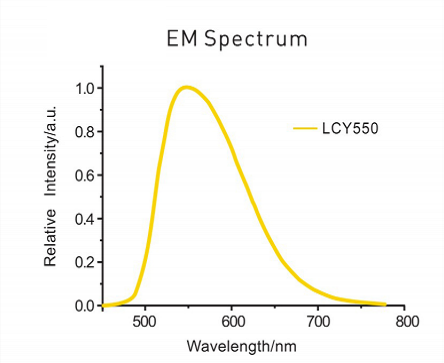

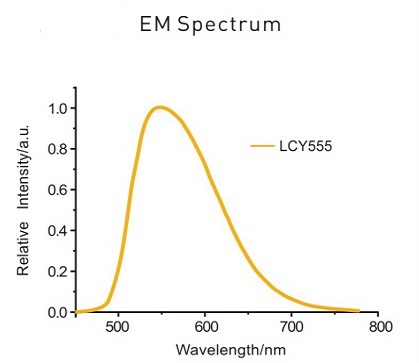

Yttrium Aluminum Garnet (YAG) LED Phosphor, also known as a scintillator in its pure single-crystal form, is a versatile material with a broad spectrum of applications. It emits yellow light when exposed to blue or ultraviolet light, as well as to X-rays. The exceptional stability of YAG phosphor is attributed to its distinctive crystal structure and the simplicity of its synthesis process. It is highly effective when excited by a 450nm blue LED chip, producing an emission peak in the 530-560nm wavelength range.

Our LED phosphors enable LCD manufacturers to achieve displays with an expanded color gamut, enhancing color accuracy and delivering unparalleled visual realism. These phosphor materials are engineered for superior stability and efficiency. This phosphor series can be employed in red LED packages or combined with other red or yellow phosphors to create warm white or specialized light LEDs.

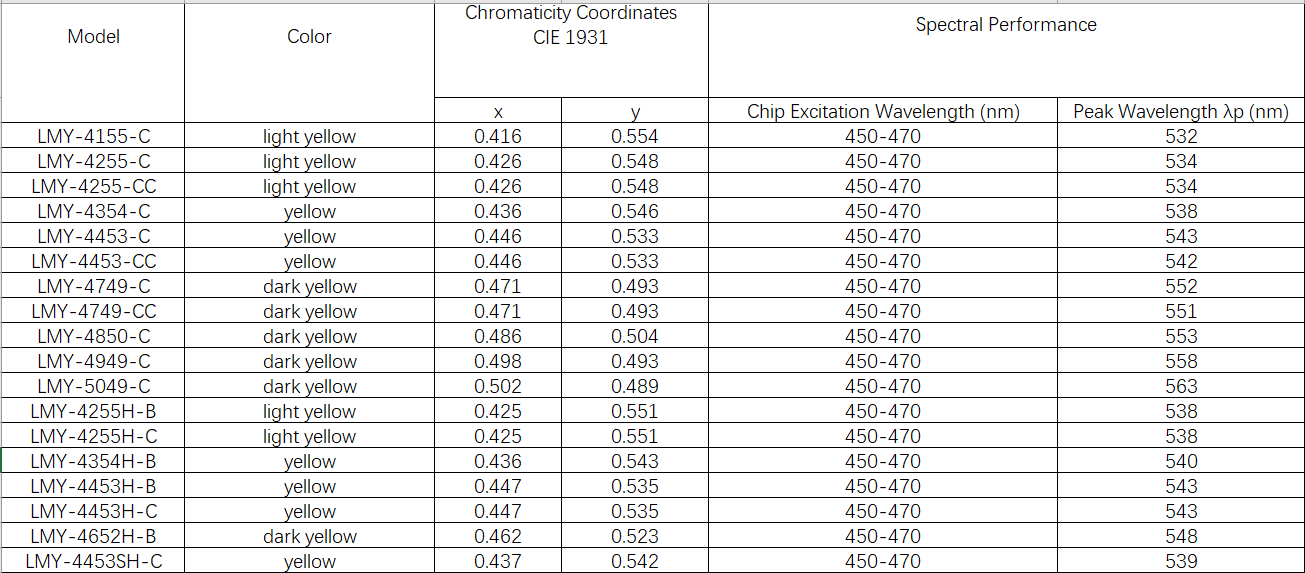

Specification of Yttrium Aluminum Garnet (YAG) Phosphor

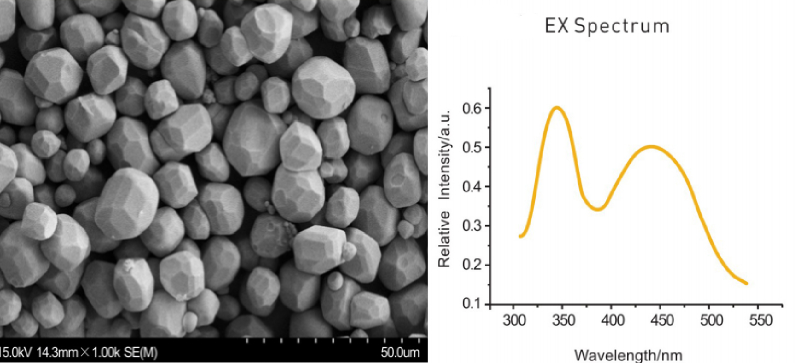

Properties of Yttrium Aluminum Garnet (YAG) Phosphor



Applications of Yttrium Aluminum Garnet (YAG) Phosphor

– Human lighting – lighting that meets the needs of human natural clocks
– General lighting – such as retail, residential and professional lighting
– Backlighting – for smartphones, monitors, televisions, etc.
– Internal and external applications in the automotive industry
