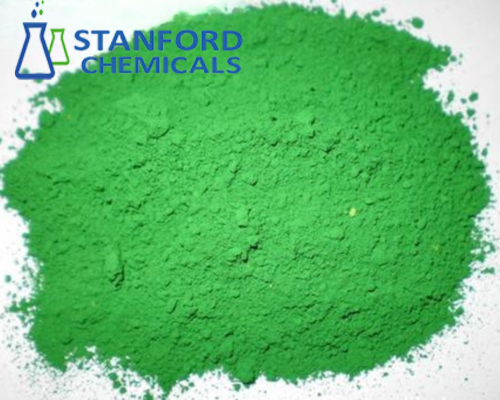

PM3690 Green Nitride Phosphor Powder (BS540S)

Get A Quote






  I would like to join the mailing list to receive updates from Stanford Chemicals.
*: e-mail address with your company's domain name is preferred. Otherwise, we may not be able to process your inquiry.

Catalog No. PM3690
Excitation Wavelength 395-460 nm
Peak wavelength 542±2 nm
Form Green crystal powder
Bottle Packaging 100 g/bottle

Green Nitride Phosphor Powder (BS540S) is a durable nitride phosphor showing a small decrease of brightness at high temperatures. Stanford Chemicals Company (SCC) offers high-quality Green Nitride Phosphor Powder with competitive pricing.

Related products: Silicate Green Phosphor, Silicate Yellow Phosphor

Description

Description

Green Nitride Phosphor Powder (BS540S) Description

Green Nitride Phosphor Powder (BS540S) is a durable nitride phosphor showing a small decrease of brightness at high temperatures. Any color of light can be created by blending several types of phosphors and applied to a variety of uses: LCD backlight, generic illumination, etc.

Green Nitride Phosphor Powder (BS540S) Specification

Excitation Wavelength 395-460nm
Peak Wavelength 542±2nm
Relative Brightness 120±10%
Medium Particle Diameter/nm 18±3nm
CIE (x, y) X=0.346±0.005

Y=0.640±0.005

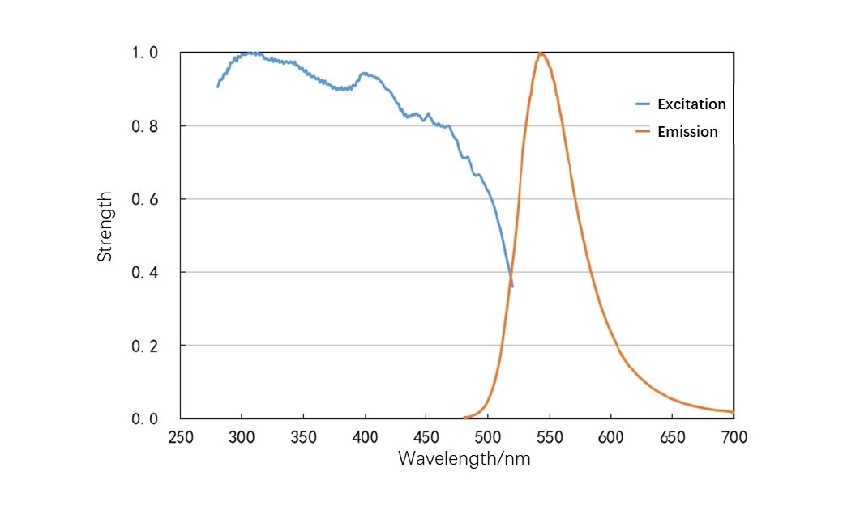

Green Nitride Phosphor Powder (BS540S) Emission Spectrum

Green Nitride Phosphor Powder (BS540S) Emission Spectrum

Green Nitride Phosphor Powder (BS540S) Applications

Mixed with red phosphors and blue phosphors, high color temperature and high CRI white LEDs can be packaged with UV chips.

Green Nitride Phosphor Powder (BS540S) Packaging

Our Green Nitride Phosphor Powder is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
