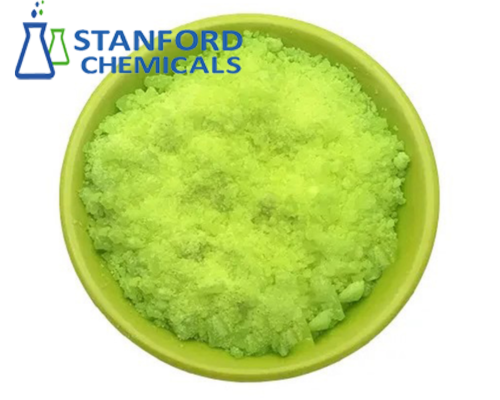

PM2870 Silicate Green Phosphor Powder
| Catalog No. | PM2870 |
| Particle Size | D50 10-20 um |
| Excitation Range | 360nm-500nm |
| Color Point (x,y) | 0.226-0.371, 0.584-0.620 |
| Emission Peak Wavelength | 516nm-540nm |
Silicate Green Phosphor is one kind of rare earth luminescent materials, which has good chemical stability, excellent aging performance, high light conversion efficiency, good crystallinity, and light transmission. Stanford Chemicals Company (SCC) offers high-quality Silicate Green Phosphor at a very competitive price.
Related products: Aluminate Green Phosphor, Red Nitride Phosphor Powder(YG630), KSF Phosphor Powder
Description
Silicate Green Phosphor Description
Silicate Green Phosphor is mainly used in the packaging of high color rendering white LEDs and green LEDs. Stanford Advanced Materials (SAM) is a global supplier of high-quality Silicate Green Phosphor who enjoys over two decades of experience in the manufacture and sale of high-quality Silicate Green Phosphor.
Silicate Green Phosphor Features
• High efficiency, >96%
• Narrow emission peak, 70-82nm FWHM
• Broad excitation range, UV-Violet-Blue
Silicate Green Phosphor Specifications
|
Product |
Peak Wavelength |
Color Point |
Particle Size (μm) |
|
|
p (nm) |
CIEx |
CIEy |
D50V |
|
|
SAMG2262 |
516 |
0.226 |
0.620 |
15.5 |
|
SAMG2762 |
526 |
0.286 |
0.626 |
15.5 |
|
SAMG3261 |
530 |
0.320 |
0.610 |
15.5 |
|
SAMG3560 |
535 |
0.346 |
0.597 |
15.5 |
|
SAMG3759 |
540 |
0.371 |
0.584 |
15.5 |
Silicate Green Phosphor Applications
-Mobile Display -high brightness
-Smartphone
-Tablet PC
-Laptop
-GPS
-Portable and Lower Power Lighting
-Flashlight
-Task Lamp
-Lantern
