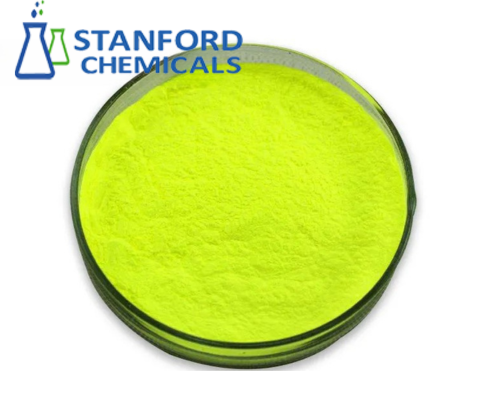

PM2868 Aluminate Green Phosphor Powder
| Catalog No. | PM2868 |
| Particle Size | D50 3-20 um |
| Excitation Range | 450nm-470nm |
| Color Point (x,y) | 0.327-0.371, 0.556-0.578 |
| Emission Peak Wavelength | 516nm-545nm |
Aluminate Green Phosphor is one kind of rare earth luminescent materials, which offers higher thermal stability and robust reliability, making it the perfect phosphor for high-power LEDs. Stanford Advanced Materials (SAM) offers high-quality Aluminate Green Phosphor at a very competitive price.
Related products: Red Nitride Phosphor Powder(YG630), KSF Phosphor Powder
Description
Aluminate Green Phosphor Description
SAM series Aluminate Green Phosphors are the modified YAG phosphors with good chemical stability, aging resistance, and light conversion efficiency. It can be widely used in the preparation of white LED with various color temperature and high color rendering (Ra≥90).
Aluminate Green Phosphor Features
• Broad emission, 120nm FWHM
• High resistance to heat and humidity
• High thermal stability, 90% lm at 200℃
Aluminate Green Phosphor Specifications
|
Product |
Peak Wavelength |
Color Point |
Particle Size (μm) |
|
|
p (nm) |
CIEx |
CIEy |
D50V |
|
|
SAM515 |
516 |
0.327 |
0.578 |
12,15 |
|
SAM520 |
522 |
0.332 |
0.577 |
12,15 |
|
SAM525 |
526 |
0.338 |
0.576 |
12,15 |
|
SAM530-01-05 |
530 |
0.354 |
0.573 |
5.5 |
|
SAM530-02-14 |
530 |
0.347 |
0.572 |
14 |
|
SAM535-01-B08 |
535 |
0.356 |
0.569 |
8.5 |
|
SAM535-03A-14 |
536 |
0.359 |
0.569 |
14.5 |
|
SAM535-03A-18 |
536 |
0.359 |
0.569 |
18 |
|
SAM535-03A-25 |
536 |
0.359 |
0.569 |
25 |
|
SAM536-01-05 |
535 |
0.364 |
0.571 |
4.5 |
|
SAM537 |
537 |
0.366 |
0.568 |
7.5 |
|
SAM540 |
540 |
0.371 |
0.565 |
11,14.5,18 |
|
SAM545 |
545 |
0.394 |
0.556 |
7,10,14,15 |
Aluminate Green Phosphor Applications
-General Lighting
-LED retrofit lamps
-Architectural
-Retail display
-Commercial / industrial
-Entertainment
-Automotive interior lighting
-Display Backlighting
-TV and monitor
-Tablet PC and mobile display, etc.
