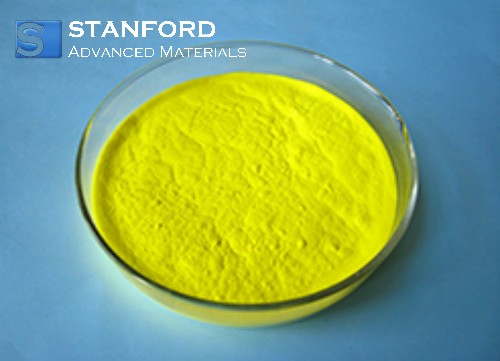

PM2854 Aluminate Phosphor Powder
| Catalog No. | PM2854 |
| Excitation Range | 440nm-470nm |
| Color Point (x,y) | 0.419-0.492, 0.552-0.499 |
Aluminate Phosphor is one kind of rare earth luminescent materials with higher thermal stability and robust reliability, making it the perfect phosphor for high-power LEDs. Stanford Advanced Materials (SAM) offers high-quality Aluminate Phosphor at a very competitive price.

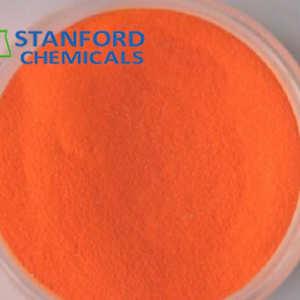

Related products: Green Silicate Phosphors, Red Nitride Phosphor Powder (YG650)
Description
Aluminate Phosphor Powder Description
Aluminate Phosphors are modified YAG phosphors with good chemical stability, aging resistance, and light conversion efficiency. The luminescence can cover various colors such as green, yellow-green, yellow, orange, etc. It can be widely used in the preparation of white LED with various color temperatures and high color rendering (Ra≥90).
Features:
- Broad emission, 120nm FWHM
- Choice of yellow & green wavelengths, 515-565nm
- High resistance to heat and humidity
- High thermal stability, 90% lm at 200℃
Aluminate Phosphor Powder Specifications
| Type | Model | Color | Chromaticity Coordinates
CIE 1931 |
Spectral Performance | D50 (μm) | ||
| x | y | Chip Excitation Wavelength (nm) | Peak Wavelength λp (nm) | ||||
| YAG | LMY-4155-C | light yellow | 0.416 | 0.554 | 450-470 | 532 | 10±1 |
| LMY-4255-C | light yellow | 0.426 | 0.548 | 450-470 | 534 | 10±1 | |
| LMY-4255-CC | light yellow | 0.426 | 0.548 | 450-470 | 534 | 5±1 | |
| LMY-4354-C | yellow | 0.436 | 0.546 | 450-470 | 538 | 10±1 | |
| LMY-4453-C | yellow | 0.446 | 0.533 | 450-470 | 543 | 10±1 | |
| LMY-4453-CC | yellow | 0.446 | 0.533 | 450-470 | 542 | 5±1 | |
| LMY-4749-C | dark yellow | 0.471 | 0.493 | 450-470 | 552 | 10±1 | |
| LMY-4749-CC | dark yellow | 0.471 | 0.493 | 450-470 | 551 | 5±1 | |
| LMY-4850-C | dark yellow | 0.486 | 0.504 | 450-470 | 553 | 10±1 | |
| LMY-4949-C | dark yellow | 0.498 | 0.493 | 450-470 | 558 | 10±1 | |
| LMY-5049-C | dark yellow | 0.502 | 0.489 | 450-470 | 563 | 10±1 | |
| LMY-4255H-B | light yellow | 0.425 | 0.551 | 450-470 | 538 | 15±1 | |
| LMY-4255H-C | light yellow | 0.425 | 0.551 | 450-470 | 538 | 10±1 | |
| LMY-4354H-B | yellow | 0.436 | 0.543 | 450-470 | 540 | 15±1 | |
| LMY-4453H-B | yellow | 0.447 | 0.535 | 450-470 | 543 | 15±1 | |
| LMY-4453H-C | yellow | 0.447 | 0.535 | 450-470 | 543 | 10±1 | |
| LMY-4652H-B | dark yellow | 0.462 | 0.523 | 450-470 | 548 | 15±1 | |
| LMY-4453SH-C | yellow | 0.437 | 0.542 | 450-470 | 539 | 10±1 | |
Aluminate Phosphor Spectrum
Aluminate Phosphor Application
-General Lighting
-LED retrofit lamps
-Architectural
-Retail display
-Commercial / industrial
-Entertainment
-Automotive interior lighting
-Display Backlighting
-TV and monitor
-Tablet PC and mobile display, etc.
