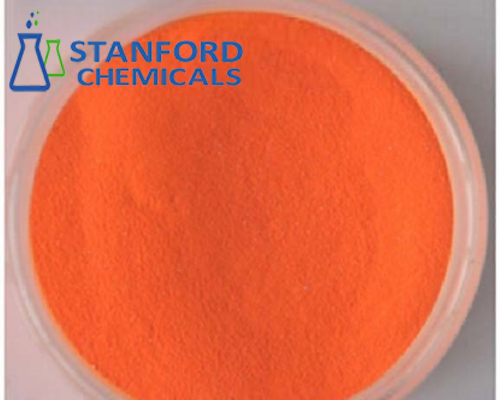

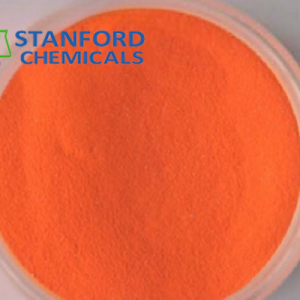

PM2849 Red Nitride Phosphor Powder (YG630)
| Catalog No. | PM2849 |
| Appearance | Red Orange Powder |
Red Nitride Phosphor Powder (YG630) is characterized by chemical stability, thermostability, and high durability. SAM is your one-stop platform to find LED phosphor for sale, who makes it easy for you to find high-quality Red Nitride Phosphor Powder.
Related Products: Yttrium Gallium Aluminum Garnet (YGaAG) Phosphor Powder, KSF Phosphor Powder, Red Nitride Phosphor Powder (YG612), Red Nitride Phosphor Powder (YG615)
Description
Red Nitride Phosphor Powder (YG630) Description
In general, phosphor is a material that exhibits a phenomenon of luminescence. It emits light while being exposed to some type of radiant energy. The Red Nitride Phosphor Powder (YG630) is characterized by chemical stability, thermostability, and high durability. It is non-poisonous, non-radioactive, and non-corrosive.
Stanford Chemicals Company (SCC) is your one-stop platform to find LED phosphor for sale in a variety of forms who has over two decades of experience in the manufacture and sale of high-quality Red Nitride Phosphor Powder (YG630).
Red Nitride Phosphor Powder (YG630) Specifications
| Product Name | Red Nitride Phosphor Powder (YG630) |
| Emission Color | Pink Red |
| Relative Intensity | 100±2% |
| Peak Wavelength (nm) | 630±1 |
| CIE-X | 0.663±0.002 |
| CIE-Y | 0.335±0.002 |
| Density (g/cm3) | 3.6 |
| Particle Size (μm) | 10±1.0, 5±1.0 |
| Excitation range (nm) | 350-550 |
Red Nitride Phosphor Powder (YG630) Application
Phosphor layers provide the majority of the light coming from fluorescent lamps and are also used in metal halide lamps to improve the balance of their emitted light. A variety of neon signs rely on phosphor layers to generate a range of different colors of light. Electroluminescent displays such as those used in aircraft instrument panels use a phosphor layer to produce glare-free lighting or as numeric and graphic display devices. White LED lamps are fabricated using a blue or ultra-violet emitter having a phosphor coating which emits at longer wavelengths, producing a full spectrum of visible light.
YD630 Red Nitride Phosphor Powder can be used to fabricate high color rendering and low color temperature LED light when paired with other phosphor powder, such as yellow silicate phosphor powder.
