Catalog No. PM2846

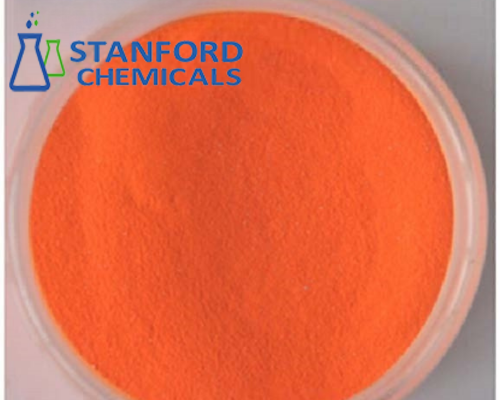

Appearance Red Orange Powder
Density 3.6 g/cm3
Particle Size 10±1.0, 5±1.0 μm

Red Nitride Phosphor Powder (YG612) is characterized by chemical stability, thermostability, and high durability. SAM is your one-stop platform to find LED phosphor for sale. We make it easy for you to buy high-quality Red Nitride Phosphor Powder (YG612).

Related Products: Yttrium Gallium Aluminum Garnet (YGaAG) Phosphor PowderKSF Phosphor Powder

Description

Description

Red Nitride Phosphor Powder (YG612) Description

A phosphor, most generally, is a substance that exhibits the phenomenon of luminescence; it emits light when exposed to some type of radiant energy. Red Nitride Phosphor Powder (YG612) is characterized by chemical stability, thermostability, and high durability. It is non-poisonous, non-radioactive, and non-corrosive.

Stanford Chemicals Company (SCC) is your one-stop platform to find LED phosphor for sale, who has over two decades of experience in the manufacture and sale of high-quality Red Nitride Phosphor Powder (YG612).

Red Nitride Phosphor Powder (YG612) Specifications

Product Name Red Nitride Phosphor Powder (YG612)
Emission Color Red
Relative Intensity 100±2%
Peak Wavelength (nm) 612±1
CIE-X 0.634±0.002
CIE-Y 0.366±0.002
Density (g/cm3) 3.6
Particle Size (μm) 10±1.0, 5±1.0
Excitation range (nm) 350-550

Red Nitride Phosphor Powder (YG612) Applications

Phosphor layers provide most of the light produced by fluorescent lamps, and are also used to improve the balance of light produced by metal halide lamps. Various neon signs use phosphor layers to produce different colors of light. Electroluminescent displays found, for example, in aircraft instrument panels, use a phosphor layer to produce glare-free illumination or as numeric and graphic display devices. White LED lamps consist of a blue or ultra-violet emitter with a phosphor coating that emits at longer wavelengths, giving a full spectrum of visible light.

Paired with other phosphor powder such as yellow silicate phosphor powder, Red Nitride Phosphor Powder (YG612) can be used to fabricate LED light with high CRI and low color temperature.
