PM2844 Oxynitride LED Phosphor Powder

Get A Quote






  I would like to join the mailing list to receive updates from Stanford Chemicals.
*: e-mail address with your company's domain name is preferred. Otherwise, we may not be able to process your inquiry.

Catalog No. PM2844

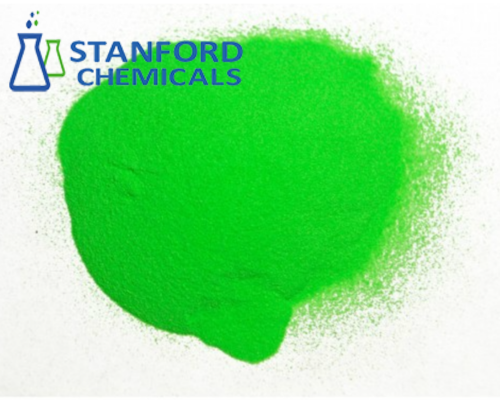

Appearance Green Powder

Oxynitride LED Phosphor Powder is characterized by chemical stability, thermostability, and high durability. SAM is your one-stop platform to find LED phosphor for sale in a variety of forms. We make it easy for you to buy high-quality Oxynitride LED Phosphor Powder.

Related Products:  Green Silicate PhosphorsRed Nitride Phosphor Powder (YG630), Yttrium Gallium Aluminum Garnet (YGaAG) Phosphor Powder

Description

Description

Oxynitride LED Phosphor Powder Description

Basically, the term phosphor stands for that substance which exhibits the phenomenon of luminescence. It is such a substance that emits light on being excited by any type of radiant energy. Oxynitride LED Phosphor Powder possesses chemical stability, thermostability, and high durability. It has no poisonousness, radioactivity, or corrosiveness.

Stanford Chemicals Company (SCC) is more than two-decade-old and manufactures LED phosphor in various forms. It acts as your one-stop platform for buying high-quality Oxynitride LED Phosphor Powder.

Oxynitride LED Phosphor Powder Specifications

Product Name Oxynitride LED Phosphor Powder
Light Color Blue
Relative Intensity 100±2%
Peak Wavelength (nm) 490±1
CIE-X 0.076±0.002
CIE-Y 0.462±0.002
Density (g/) 2.7
Particle Size () 15±2.0
Chip Size (nm) 445-470

Oxynitride LED Phosphor Powder Application

The phosphor layer is one of the main light-emitting elements in the different kinds of fluorescent lamps in use today.

  • The balance of radiating light effectively done in metal halide lamps, together with the balance of screen displays, uses the phosphor layer.
  • Neon signs of different colors of light are made using various types of phosphor layers.
  • Electroluminescent displays, illuminated, absence-of-glare devices, found in numeric or graphic display devices, or other specific applications on, for instance, aircraft instrument panels, are also made using the phosphor layer.
  • The white LED lamps are formed of a blue or an ultra-violet emitter with a phosphor coating that emits at longer wavelengths, thus giving a full spectrum of visible light.

Oxynitride LED Phosphor Powder that is combined together with red and green phosphor powder can actually help in the development of white LED light of Ra95 or above. In general, Oxynitride LED Phosphor emits icy-blue light along with blue chips.
