Orange Silicate LED Phosphor Powder is characterized by thermostability and high durability. SAM is your one-stop platform to find LED phosphor for sale in a variety of forms. We make it easy for you to buy the Orange Silicate LED Phosphor Powder you need for your next project.

Related Products: Red Nitride Phosphor Powder(YG630), KSF Phosphor Powder

Description

Description

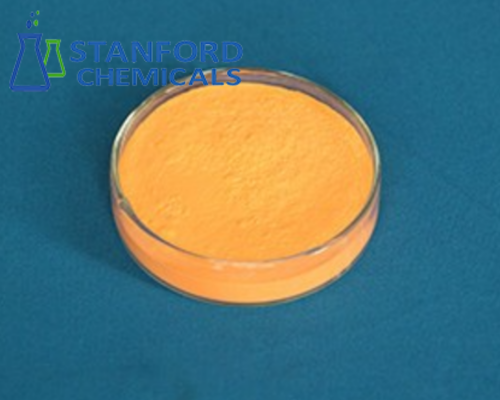

Orange Silicate LED Phosphor Powder Description

A phosphor, most generally, is a substance that exhibits the phenomenon of luminescence; it emits light when exposed to some type of radiant energy. Orange Silicate LED Phosphor Powder is characterized by thermostability and high durability. It is non-poisonous, non-radioactive, and non-corrosive.

Stanford Chemicals Company (SCC) is your one-stop platform to find LED phosphor for sale in a variety of forms and has over two decades of experience in the manufacture and sale of high-quality Orange Silicate LED Phosphor Powder.

Orange Silicate LED Phosphor Powder Specifications

Product Name Orange Silicate LED Phosphor Powder
Emission Color Orange
Relative Intensity 100±2%
Peak Wavelength (nm) 600±1
CIE-X 0.582±0.002
CIE-Y 0.416±0.002
Density (g/cm3) 4.8
Particle Size (μm) 15±2.0
Chip Size (nm) 445-470

Orange Silicate LED Phosphor Powder Application

Phosphor layers provide most of the light produced by fluorescent lamps and are also used to improve the balance of light produced by metal halide lamps. Various neon signs use phosphor layers to produce different colors of light. Electroluminescent displays found, for example, in aircraft instrument panels, use a phosphor layer to produce glare-free illumination or as numeric and graphic display devices. White LED lamps consist of a blue or ultra-violet emitter with a phosphor coating that emits at longer wavelengths, giving a full spectrum of visible light.

Paired with other phosphor powders, Orange Silicate LED Phosphor Powder can be used to emit LED light of higher intensity. In general, Orange Silicate LED Phosphor Powder is applied to produce warm white LED light.
